PAKSAT-MM1

PakSAT-MM1R

PakSat-MMl planned launched is in July 2024 and satellite will be available for its services by end August 2024, as per plan. Total deliverable capacity of Ka-Band is 10Gbps covering whole Pakistan, there is no steerable beam in Ka-HTS payload. Maximum throughput achievable on a single beam is approx. 1 Gbps. User beams are fixed and cannot be steered over any particular area. For PakSat-MM1 HTS, three Gateway beams have been designed over Lahore, Karachi and Islamabad with gateway beam of 0.08° . It is recommended to install two gateways (one primary and other as back up). However, PakSat-MM1 HTS has been designed in such a way that one GW can handle all the traffic of 11 user beams.

Details of Paksat-MM1 Transponders

     Payloads  Size (MHz)Number of TPsEIRP (dBW)

        C-Band

        72        03        42.5
        68        01        42.5
        36        06        42.5
    Ku-Band BSS        33        08        56
     Ku-Band FSS        54        09        55
        36        03        55
       Ka-Band       288        07        66
       188        06        66


Coverage Maps

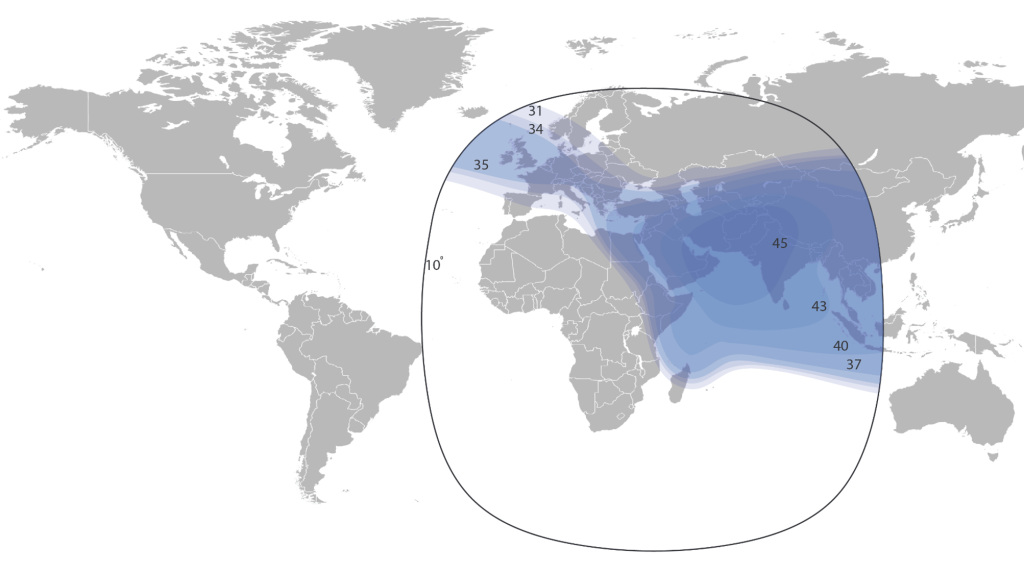

C-band Coverage
  • High performance and high power transponders supporting TV broadcast and HDTV programming with a wide regional coverage.
  • Direct one hop access into premium UK and mainland Europe cable and DTH platforms through a network of strategically located media port partners.
  • Convenient turnaround via fiber from UK to North America for cost effective access to US and Canadian cable and DTH head-ends.
  • High-power beam for robust cellular back-haul connectivity across S. Asia, Middle East and parts of Africa and Central Asia.
  • Ideal for cost effective IP trunking from UK and Mainland Europe into S. Asia, Middle East and parts of Africa and Central Asia.

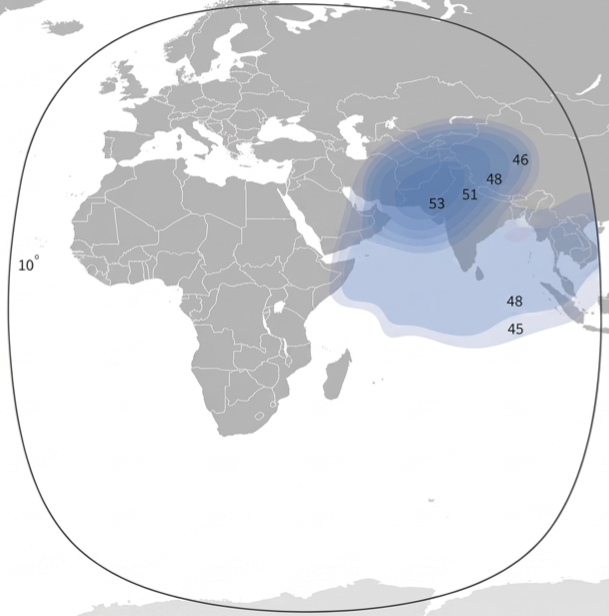

Ku-band Coverage
  • High power coverage over Pakistan (up to 55 dBW) and adjoining areas, enabling various communication services including VSAT applications.
  • Supports higher order modulation schemes and data throughputs for maximum spectral efficiency, link performance and cost savings.
  • Ideal for Cellular back-haul, DSNG and data networks with guaranteed link reliability and stability even under adverse weather conditions.
Ka-band Coverage
  • Ka-Band HTS payload will enable high speed connectivity / broadband services in the country.
